RayBio® C-Series Human Growth Factor Antibody Array 1 Kit. Detects 41 Human Growth Factors. Suitable for all liquid sample types.
Best Seller
Human Growth Factor Array C1
Human Growth Factor Array C1
Contact Us for Bulk Request
Product Description
Specifications
| Size | 2 Sample Kit, 4 Sample Kit, 8 Sample Kit |
| Species | Human |
| Compatible Sample Types | Cell Culture Supernatants, Plasma, Serum, Tissue Lysates, Cell Lysates |
| Quantitative/Semi-Quantitative | Semi-Quantitative |
| Number of Targets Detected | 41 |
| Recommended Applications | Multiplexed Protein Detection; Detection of Relative Protein Expression; Detecting Patterns of Cytokine Expression; Biomarker/ Key Factor Screening; Identifying Key Factors; Confirming a Biological Process |
| Solid Support | Membrane |
| Design Principle | Sandwich-based |
| Method Of Detection | Chemiluminescence |
| Shipping Type | Blue ice |
| Storage | -20°C |
Product Features
- Easy to use
- No specialized equipment needed
- Compatible with nearly any liquid sample
- Proven technology (many publications)
- Highly sensitive (pg/ml)
- Sandwich ELISA specificity
- Higher density than ELISA, Western blot or bead-based multiplex

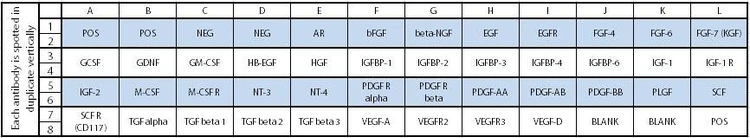

Target Names
| Scroll over each target protein for more information | ||||
|---|---|---|---|---|
| Amphiregulin
| bFGF
| beta-NGF
| EGF
| EGFR
|
| FGF-4
| FGF-6
| FGF-7 (KGF)
| GCSF
| GDNF
|
| GM-CSF
| HB-EGF
| HGF
| IGFBP-1
| IGFBP-2
|
| IGFBP-3
| IGFBP-4
| IGFBP-6
| IGF-1
| IGF-1 R
|
| IGF-2
| M-CSF
| M-CSF R
| NT-3
| NT-4
|
| PDGF R alpha
| PDGF R beta
| PDGF-AA
| PDGF-AB
| PDGF-BB
|
| PLGF
| SCF
| SCF R (CD117/c-kit)
| TGF alpha
| TGF beta 1
|
| TGF beta 2
| TGF beta 3
| VEGF-A
| VEGFR2
| VEGFR3
|
| VEGF-D
| ||||

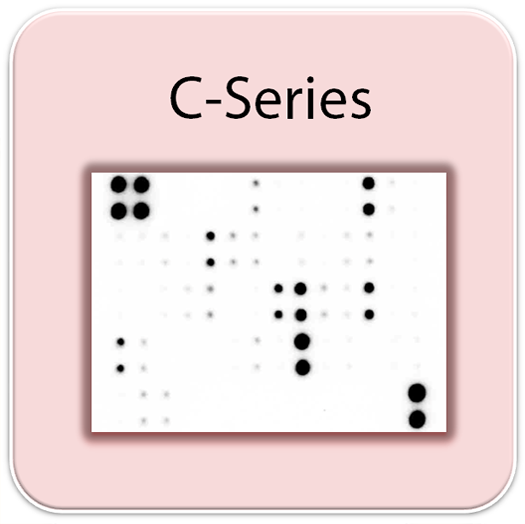

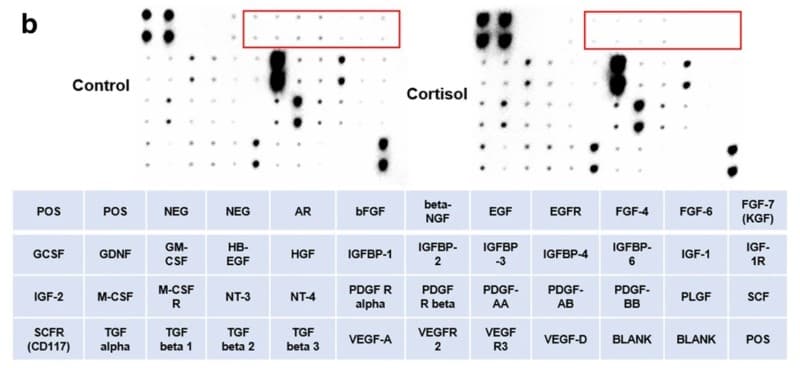

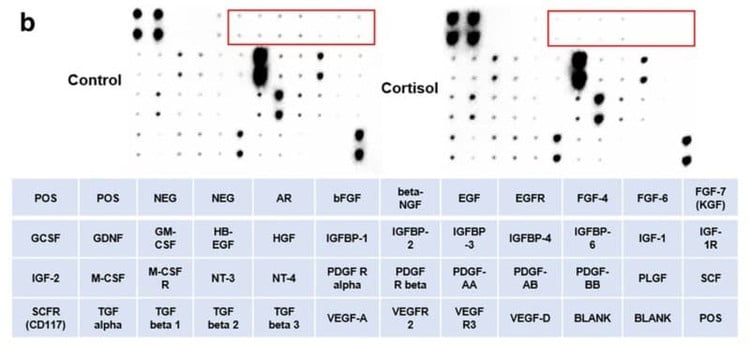

Typical Data

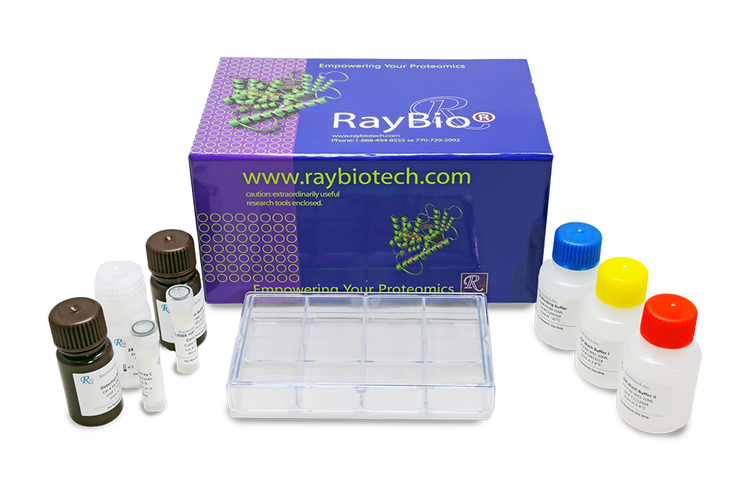

Kit Components
- Human Growth Factor Antibody Array C1 Membranes
- Blocking Buffer
- Wash Buffer 1
- Wash Buffer 2
- Biotinylated Detection Antibody Cocktail
- Streptavidin-Conjugated HRP
- Detection Buffer C
- Detection Buffer D
- Lysis Buffer
- 8-Well Incubation Tray
- Plastic Sheets
- Array Templates
- Manual
Additional Materials Required
- Pipettors, pipet tips and other common lab consumables
- Orbital shaker or oscillating rocker
- Tissue Paper, blotting paper or chromatography paper
- Adhesive tape or Saran Wrap
- Distilled or de-ionized water
- A chemiluminescent blot documentation system (such as UVP's ChemiDoc-It® or EpiChem II Benchtop Darkroom or GE's ImageQuant™ LAS 4000 or Amersham Imagers 600 and 680), X-ray Film and a suitable film processor, or another chemiluminescent detection system.
Assay Procedure Summary
- Block membranes
- Incubate with Sample
- Incubate with Biotinylated Detection Antibody Cocktail
- Incubate with HRP-Conjugated Streptavidin
- Incubate with Detection Buffers
- Image with chemiluminescent imaging system
- Perform densitometry and analysis
Storage/Stability
For best results, store the entire kit frozen at -20°C upon arrival. Stored frozen, the kit will be stable for at least 6 months which is the duration of the product warranty period. Once thawed, store array membranes and 1X Blocking Buffer at -20°C and all other reagents undiluted at 4°C for no more than 3 months.
documents
citations
Reconstruction of the human nipple-areolar complex: a tissue engineering approach
- Year:
- 2024
- Journal Name:
- Frontiers in bioengineering and biotechnology
- PubMed ID:
- 38425730
A novel role of CD73-IFNγ signalling axis in human mesenchymal stromal cell mediated inflammatory macrophage suppression
- Year:
- 2024
- Journal Name:
- Regenerative therapy
- PubMed ID:
- 38845846
Paracrine signals influence patterns of fibrocartilage differentiation in a lyophilized gelatin hydrogel for applications in rotator cuff repair
- Year:
- 2024
- Journal Name:
- Biomater Sci
- PubMed ID:
- 39150417
Transplantable stem cell nanobridge scaffolds for accelerating articular cartilage regeneration
- Species:
- Human
- Sample Type:
- Human adipose tissue-derived mesenchymal stem cells (hMSC)
- Year:
- 2023
- Journal Name:
- Biomaterials

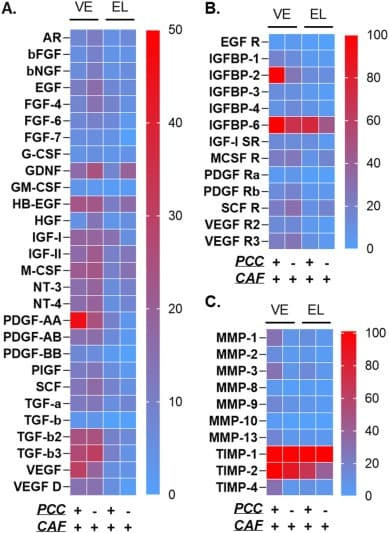

Viscoelastic hydrogels for interrogating pancreatic cancer-stromal cell interactions
- Year:
- 2023
- Journal Name:
- Materials Today Bio
Scutellarin suppresses the metastasis of triple-negative breast cancer via targeting TNFα/TNFR2-RUNX1-triggered G-CSF expression in endothelial cells
- Species:
- Human
- Sample Type:
- Human mammary microvascular endothelial cells (HMMECs)
- Year:
- 2023
- Journal Name:
- Biochemical Pharmacology
Vessel-Derived Decellularized Extracellular Matrices (VdECM): Novel Bio-Engineered Materials for the Wound Healing
- Species:
- Human
- Sample Type:
- adipocyte-derived stem cell (ASC)
- Year:
- 2023
- Journal Name:
- Tissue Engineering and Regenerative Medicine
Comparison of the Cost and Effect of Combined Conditioned Medium and Conventional Medium for Fallopian Tube Organoid Cultures
- Species:
- Human
- Sample Type:
- human umbilical vein endothelial cells (HUVEC)
- Year:
- 2023
- Journal Name:
- Cell Transplantation

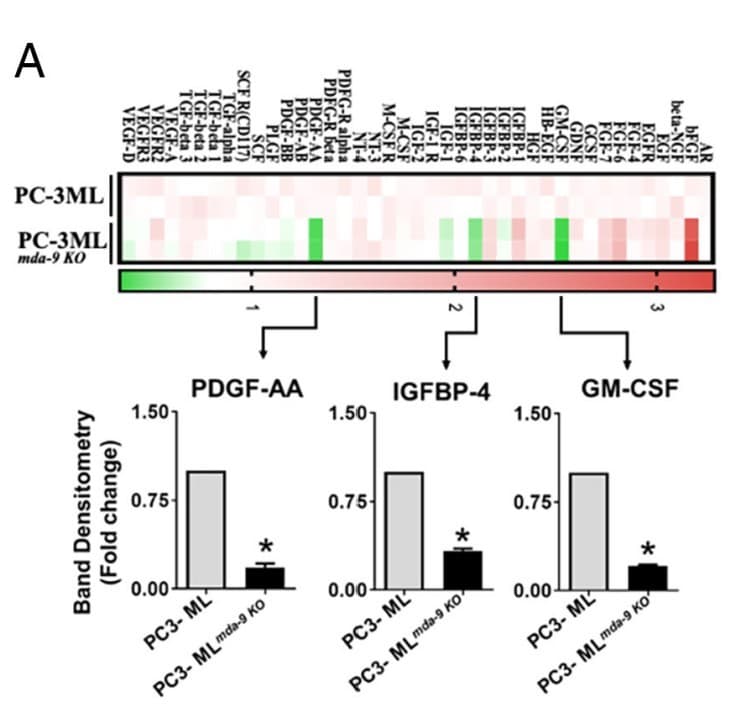

MDA-9/Syntenin in the tumor and microenvironment defines prostate cancer bone metastasis
- Year:
- 2023
- Journal Name:
- Proc Natl Acad Sci U S A
- PubMed ID:
- 37922327
Harnessing the synergy of perfusable muscle flap matrix and adipose-derived stem cells for prevascularization and macrophage polarization to reconstruct volumetric muscle loss
- Species:
- Human
- Sample Type:
- human adipose-derived stem cells (hASCs)
- Year:
- 2022
- Journal Name:
- Bioactive materials
