Quantitatively detects 30 human cytokines on a glass slide microarray. Suitable for all liquid sample types. Low sample volume requirement: 50 µL or less
Human Neuro Discovery Array Q1
Human Neuro Discovery Array Q1
Contact Us for Bulk Request
Product Description
Specifications
| Size | 8 Sample Kit, 22 Sample Kit, 50 Sample Kit |
| Species | Human |
| Compatible Sample Types | Cell Culture Supernatants, Plasma, Serum, Tissue Lysates, Cell Lysates |
| Quantitative/Semi-Quantitative | Quantitative |
| Number of Targets Detected | 30 |
| Solid Support | Glass Slide |
| Design Principle | Sandwich-based |
| Method Of Detection | Fluorescence Laser Scanner |
| Research Area | Neuroscience |
| Shipping Type | Blue ice |
| Storage | -20°C |
Product Features
- More cost-effective than traditional ELISA
- High specificity and system reproducibility
- Suitable for diverse sample types
- Low sample volume requirement: 50 µL or less
- Get results same day (6-hour processing time)
- Well-suited for high throughput assays
- Q Analyzer software provides one-step computation

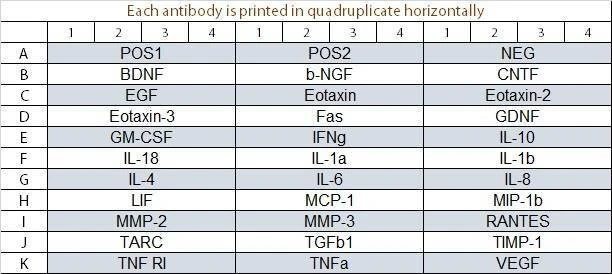

Target Names
| Scroll over each target protein for more information | ||||
|---|---|---|---|---|
| BDNF
| beta-NGF
| CNTF
| EGF
| Eotaxin-1 (CCL11)
|
| Eotaxin-2 (MPIF-2/CCL24)
| Eotaxin-3 (CCL26)
| Fas (TNFRSF6/Apo-1)
| GDNF
| GM-CSF
|
| IFN-gamma
| IL-1 alpha (IL-1 F1)
| IL-1 beta (IL-1 F2)
| IL-10
| IL-18
|
| IL-4
| IL-6
| IL-8 (CXCL8)
| LIF
| MCP-1 (CCL2)
|
| MIP-1 beta (CCL4)
| MMP-2
| MMP-3
| RANTES (CCL5)
| TARC (CCL17)
|
| TGF beta 1
| TIMP-1
| TNF alpha
| TNF RI (TNFRSF1A)
| VEGF-A
|
Application Notes
Suggested Application
Multiplexed Protein Detection; Biomarker Screening; Identifying Key Factors; Confirming Biological Process; Biomarker Validation; Validation of Antibody Array Results; Quantitative Protein Detection; Establishing Normal Range
Kit Components
- Human Neuro Discovery Array Q1 Slide(s)
- Blocking Buffer
- Wash Buffer 1
- Wash Buffer 2
- Lyophilized Standard Mix
- Biotinylated Detection Antibody Cocktail
- Streptavidin-Conjugated Fluor
- 30 ml Centrifuge Tube
- Adhesive Plastic Strips
- Manual
Other Materials Required
- Distilled or deionized water
- Small plastic boxes or containers
- Pipettors, pipette tips and other common lab consumables
- Orbital shaker or oscillating rocker
- Aluminum foil
- Gene microarray scanner or similar laser fluorescence scanner
View Compatible Laser Scanners
Don't have a compatible scanner? RayBiotech now offers FREE scanning service for all RayBio glass slide antibody arrays! Learn More
Protocol Outline
- Dry the glass slide
- Prepare Standards
- Block array surface
- Incubate with Samples and Standards
- Incubate with Biotinylated Detection Antibody Cocktail
- Incubate with Streptavidin-Conjugated Fluor
- Disassemble the glass slide
- Scan with a gene microarray laser scanner
- Perform densitometry and analysis
Storage/Stability
For best results, store the entire kit frozen at -20°C upon arrival. Stored frozen, the kit will be stable for at least 6 months which is the duration of the product warranty period. Once thawed, store array slide(s), standard mix, detection antibody cocktail, and Cy3-Conjugated Streptavidin at -20°C and all other reagents undiluted at 4°C for no more than 3 months.
documents
GAL (GAL-QAH-NEU-1.gal)
Excel (QAH-NEU-1_Analysis_Tool.xls)
