RayBio® G-Series Human Receptor Tyrosine Kinase Phosphorylation Antibody Array 1 Kit. Detects 71 Human RTKs. Suitable for all liquid sample types but intended for use with cell and tissue lysates.
Human RTK Phosphorylation Array G1
Human RTK Phosphorylation Array G1
Contact Us for Bulk Request
Product Description
Specifications
| Size | 4 Sample Kit, 8 Sample Kit |
| Species | Human |
| Compatible Sample Types | Cell Culture Supernatants, Plasma, Serum, Tissue Lysates, Cell Lysates |
| Quantitative/Semi-Quantitative | Semi-Quantitative |
| Number of Targets Detected | 71 |
| Solid Support | Glass Slide |
| Design Principle | Sandwich-based |
| Method Of Detection | Fluorescence Laser Scanner |
| Research Area | Post-Translational Modifications, Phosphorylation, PI3K-AKT Signaling |
| Shipping Type | Blue ice |
| Storage | -20°C |
Related Products
Human Phospho-BTK (Y551) ELISA Kit
As low as $521.00
Human Phosphotyrosine ACK ELISA Kit
As low as $422.00
Human Phospho-AXL (Y779) ELISA Kit
As low as $521.00
Product Features
- High sensitivity and specificity
- Low sample volume (10-100 µl per array)
- Large dynamic range of detection
- Compatible with most sample types
- Test 4 or 8 samples on each slide
- Suitable for high-throughput assays

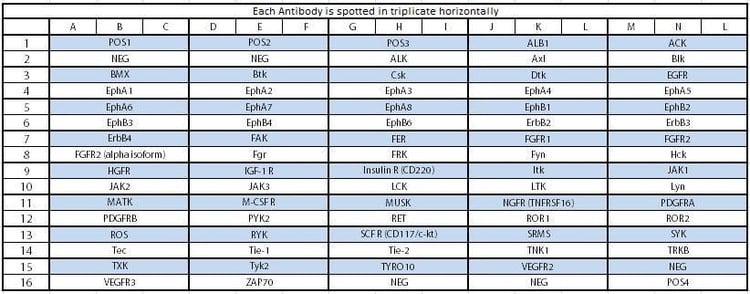

Target Names
| Scroll over each target protein for more information | ||||
|---|---|---|---|---|
| ABL1
| ACK
| ALK-1
| Axl
| Blk
|
| BMX
| Btk
| Csk
| Dtk
| EGFR
|
| EphA1
| EphA2
| EphA3
| EphA4
| EphA5
|
| EphA6
| EphA7
| EphA8
| EphB1
| EphB2
|
| EphB3
| EphB4
| EphB6
| ErbB2
| ErbB3
|
| ErbB4
| FAK
| FER
| FGFR1
| FGFR2
|
| FGFR2 alpha isoform
| Fgr
| FRK
| Fyn
| Hck
|
| HGFR
| IGF-1 R
| Insulin R (CD220)
| Itk
| JAK1
|
| JAK2
| JAK3
| LCK
| LTK
| Lyn
|
| MATK
| M-CSF R
| MUSK
| NGFR (TNFRSF16)
| PDGFRA
|
| PDGFRB
| PYK2
| RET
| ROR1
| ROR2
|
| ROS
| RYK
| SCF R (CD117/c-kit)
| SRMS
| SYK
|
| Tec
| Tie-1
| Tie-2
| TNK1
| TRKB
|
| TXK
| Tyk2
| TYRO10 (DDR2/TKT)
| VEGFR2
| VEGFR3
|
| ZAP70
| ||||
Species Detected
Human
Application Notes
Suggested Application
Multiplexed Protein Detection; Detection of Relative Protein Expression; Detecting Patterns of Cytokine Expression; Biomarker Screening; Identifying Key Factors; Confirming a Biological Process
Kit Components
- Human RTK Phosphorylation Antibody Array G1 Slide(s)
- Blocking Buffer
- Wash Buffer 1
- Wash Buffer 2
- Biotinylated Detection Antibody Cocktail
- Streptavidin-Conjugated Fluor
- Lysis Buffer
- Protease Inhibitor Cocktail
- Phosphatase Inhibitor Cocktail II
- Adhesive Plastic Strips
- 30 ml Centrifuge Tube
- Manual
Other Materials Required
- Small plastic boxes or containers
- Pipettors, pipette tips and other common lab consumables
- Orbital shaker or oscillating rocker
- Aluminum foil
- Gene microarray scanner or similar laser fluorescence scanner
Protocol Outline
- Dry the glass slide
- Block array surface
- Incubate with Sample
- Incubate with Biotinylated Detection Antibody Cocktail
- Incubate with Streptavidin-Conjugated Fluor
- Disassemble the glass slide
- Scan with a gene microarray laser scanner
- Perform densitometry and analysis
Storage/Stability
For best results, store the entire kit frozen at -20°C upon arrival. Stored frozen, the kit will be stable for at least 6 months which is the duration of the product warranty period. Once thawed, store array slide(s) and 1X Blocking Buffer at -20°C and all other reagents undiluted at 4°C for no more than 3 months.
documents
citations
Targeting MET Signalling Activated by CPNE3-RACK1 Interaction Through VWFA Domain to Suppress Lung Cancer Progression
- Species:
- Human
- Sample Type:
- Other / Unspecified (vector-, CPNE3-overexpressing A549 cells)
- Year:
- 2025
- Journal Name:
- Journal of Cellular and Molecular Medicine
- PubMed ID:
- 41190648
Targeting Tyro3, Axl, and MerTK Receptor Tyrosine Kinases Significantly Sensitizes Triple-Negative Breast Cancer to CDK4/6 Inhibition
- Species:
- Human
- Sample Type:
- Other / Unspecified (TNBC cells treated with abemaciclib or palbociclib)
- Year:
- 2024
- Journal Name:
- Cancers
- PubMed ID:
- 38927958
Platelet-derived Growth Factor Receptor-α Induces Contraction Knots and Inflammatory Pain-like Behavior in a Rat Model of Myofascial Trigger Points
- Species:
- Human
- Sample Type:
- Tissue Lysate / Homogenate (MTrPs tissue from the upper trapezius muscle)
- Year:
- 2024
- Journal Name:
- Anesthesiology
- PubMed ID:
- 39058323
CD151 drives cancer progression depending on integrin α3β1 through EGFR signaling in non-small cell lung cancer
- Species:
- Human
- Sample Type:
- Cell Lysate (cell lysates from A549 stable cells); Tissue Lysate / Homogenate
- Year:
- 2021
- Journal Name:
- Journal of Experimental & Clinical Cancer Research
- PubMed ID:
- 34108040
Development of a novel Bruton’s tyrosine kinase inhibitor that exerts anti-cancer activities potentiates response of chemotherapeutic agents in multiple myeloma stem cell-like cells
- Species:
- Human
- Sample Type:
- Human MM cell
- Year:
- 2022
- Journal Name:
- Frontiers in pharmacology
Free Fatty Acid Species Differentially Modulate the Inflammatory Gene Response in Primary Human Skeletal Myoblasts
- Species:
- Human
- Sample Type:
- Tissue Lysate / Homogenate (skeletal myoblast SkM lysates)
- Year:
- 2021
- Journal Name:
- Biology-Basel
- PubMed ID:
- 34943232
The pathophysiological nature of sarcomeres in trigger points in patients with myofascial pain syndrome: A preliminary study
- Species:
- Human
- Sample Type:
- Tissue Lysate / Homogenate (trapezius muscle biopsies)
- Year:
- 2020
- Journal Name:
- European journal of pain (London, England)
- PubMed ID:
- 32841448
Peripheral EphrinB1/EphB1 signalling attenuates muscle hyperalgesia in MPS patients and a rat model of taut band-associated persistent muscle pain
- Species:
- Human
- Sample Type:
- Tissue Lysate / Homogenate (myofascial trigger point MTrP muscle biopsies)
- Year:
- 2020
- Journal Name:
- Molecular Pain
- PubMed ID:
- 33356837
Macrophages increase the resistance of pancreatic adenocarcinoma cells to gemcitabine by upregulating cytidine deaminase.
- Species:
- Human
- Sample Type:
- Cell Lysate (PANC-1 pancreatic cancer cell line)
- Year:
- 2013
- Journal Name:
- Oncoimmunology
- PubMed ID:
- 24498570
Using protein microarrays to study phosphorylation-mediated signal transduction
- Species:
- Human
- Sample Type:
- N/A (Review reference, no sample type, just a reference to our arrays)
- Year:
- 2012
- Journal Name:
- Seminars in Cell and Developmental Biology
- PubMed ID:
- 22706299
