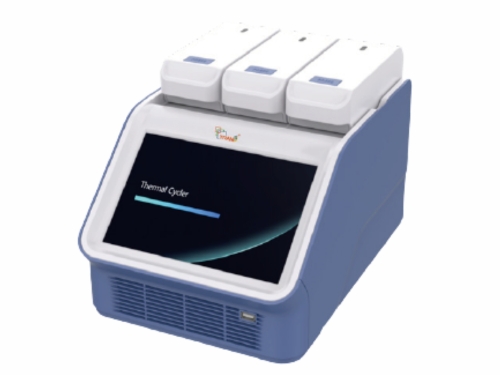

Triple-Block Gradient Thermal Cycler
Cat# TSP-300
Size : 1 unit
Brand : TransGen Biotech
Contact local distributor :
Phone : +1 850 650 7790
Three independently controlled PCR blocks for flexible, simultaneous thermal cycling.
The TSP-300 Triple-Block Gradient Thermal Cycler from TransGen Biotech is designed to run three different PCR programs simultaneously, offering flexibility for molecular biology laboratories.
Featuring three independently controlled 32-well blocks, a 10.1-inch touchscreen and heating rates of up to 6°C/s, the instrument supports routine PCR amplification, gradient optimization and parallel experimental workflows.
Product Description
The TSP-300 Triple-Block Gradient Thermal Cycler is a programmable PCR instrument equipped with three independently controlled reaction blocks. Each block accommodates 32 x 0.2 mL PCR tubes, allowing three different PCR programs to run simultaneously.
The independent temperature-gradient functionality enables optimization of annealing temperatures and PCR conditions across different experimental protocols. Its reinforced aluminum modules and Peltier-based temperature control provide rapid heating and cooling, with maximum rates of 6°C/s and 5°C/s, respectively.
A 10.1-inch capacitive touchscreen with an Android-based operating system provides graphical program navigation. The instrument supports more than 20,000 programs, adjustable ramping rates, temperature and time increments, and built-in program templates.
Additional functions include automatic restart after a power interruption, USB connectivity, built-in Wi-Fi, computer and mobile application support, email notifications and GLP reports for monitoring experimental runs.
Technical Specifications
| Capacity | 3 x 32 x 0.2 mL |
|---|---|
| Compatible Tubes | 0.2 mL PCR tubes and 8-tube strips |
| Reaction Volume | 5 to 120 µL |
| Temperature Range | 0 to 105°C |
| Maximum Heating Rate | 6°C/s |
| Maximum Cooling Rate | 5°C/s |
| Temperature Uniformity | ≤ ±0.2°C |
| Temperature Accuracy | ≤ ±0.1°C |
| Display Resolution | 0.1°C |
| Temperature Control | Block / Tube |
| Adjustable Ramping Rate | 0.01 to 6°C/s |
| Gradient Temperature Range | 30 to 105°C |
| Gradient Span | 1 to 30°C (vertical) |
| Heated Lid Temperature | 30 to 115°C |
| Maximum Program Steps | 40 |
| Maximum Cycles | 200 |
| Hold Time | 1 second to 18 hours |
| Time Increment / Decrement | 1 to 600 seconds |
| Temperature Increment / Decrement | 0.1 to 10.0°C |
| Pause Function | Yes |
| Automatic Data Protection | Yes |
| Hold at 4°C | Indefinitely |
| Power Supply | 100-240 V AC, 50/60 Hz, 600 W |
| Operating Temperature | 10 to 30°C |
| Operating Humidity | 10% to 85% RH |
| Dimensions | 385 x 270 x 255 mm (L x W x H) |
| Weight | 11 kg |
