Quantibody® Human Bone Metabolism Array 1000 Kit. Detects 41 Human Cytokines. Suitable for all liquid sample types.
Human Bone Metabolism Array Q1000
Human Bone Metabolism Array Q1000
Contact Us for Bulk Request
Product Description
Specifications
| Size | 8 Sample Kit, 22 Sample Kit, 50 Sample Kit |
| Species | Human |
| Compatible Sample Types | Cell Culture Supernatants, Plasma, Serum, Tissue Lysates, Cell Lysates |
| Quantitative/Semi-Quantitative | Quantitative |
| Number of Targets Detected | 41 |
| Solid Support | Glass Slide |
| Design Principle | Sandwich-based |
| Method Of Detection | Fluorescence Laser Scanner |
| Research Area | Energy Metabolism |
| Shipping Type | Blue ice |
| Storage | -20°C |
Product Features
- More cost-effective than traditional ELISA
- High specificity and system reproducibility
- Suitable for diverse sample types
- Low sample volume requirement: 100 µL or less
- Get results same day (6-hour processing time)
- Well-suited for high throughput assays
- Q Analyzer software provides one-step computation
Target Names
| Scroll over each target protein for more information | ||||
|---|---|---|---|---|
Activin A
| aFGF (FGF-1)
| Amphiregulin
| bFGF
| BMP-4
|
BMP-9
| E-Selectin
| ICAM-1 (CD54)
| IGF-1
| IL-1 alpha (IL-1 F1)
|
IL-1 beta (IL-1 F2)
| IL-6
| IL-8 (CXCL8)
| IL-11
| IL-17A
|
MCP-1 (CCL2)
| M-CSF
| MIP-1 alpha (CCL3)
| MMP-2
| MMP-9
|
MMP-13
| Osteoactivin (GPNMB)
| P-Cadherin
| RANK (TNFRSF11A)
| SDF-1 alpha (CXCL12 alpha)
|
Sonic Hedgehog N-Terminal (Shh-N)
| TGF beta 1
| TGF beta 2
| TNF alpha
| VCAM-1 (CD106)
|
VE-Cadherin (CDH5)
| BMP-2
| BMP-6
| BMP-7
| DKK-1
|
MMP-3
| Osteoprotegerin (TNFRSF11B)
| Osteopontin (SPP1)
| PDGF-BB
| TGF beta 3
|
TRANCE (TNFSF11)
| ||||
Application Notes
Suggested Application
Multiplexed Protein Detection; Biomarker Screening; Identifying Key Factors; Confirming Biological Process; Biomarker Validation; Validation of Antibody Array Results; Quantitative Protein Detection; Establishing Normal Range

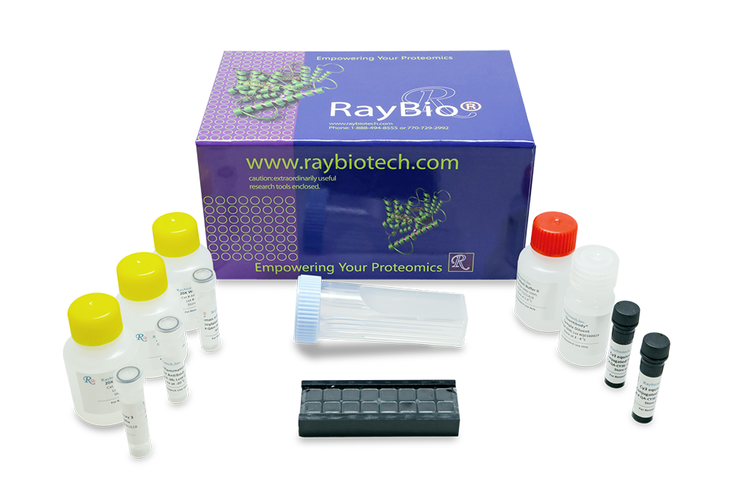

Kit Components
- Human Bone Metabolism Array Q1000 Slide(s)
- Blocking Buffer
- Wash Buffer 1
- Wash Buffer 2
- Lyophilized Standard Mix
- Biotinylated Detection Antibody Cocktail
- Streptavidin-Conjugated Fluor
- Slide Washer/Dryer
- Adhesive Plastic Strips
- Manual
Other Materials Required
- Distilled or deionized water
- Small plastic boxes or containers
- Pipettors, pipette tips and other common lab consumables
- Orbital shaker or oscillating rocker
- Aluminum foil
- Gene microarray scanner or similar laser fluorescence scanner
View Compatible Laser Scanners
Don't have a compatible scanner? RayBiotech now offers FREE scanning service for all RayBio glass slide antibody arrays! Learn More
Protocol Outline
- Dry the glass slide
- Prepare Standards
- Block array surface
- Incubate with Samples and Standards
- Incubate with Biotinylated Detection Antibody Cocktail
- Incubate with Streptavidin-Conjugated Fluor
- Disassemble the glass slide
- Scan with a gene microarray laser scanner
- Perform densitometry and analysis
Storage/Stability
For best results, store the entire kit frozen at -20°C upon arrival. Stored frozen, the kit will be stable for at least 6 months which is the duration of the product warranty period. Once thawed, store array slide(s), standard mix, detection antibody cocktail, and Cy3-Conjugated Streptavidin at -20°C and all other reagents undiluted at 4°C for no more than 3 months.
