The RayBio® mouse inflammation cytokine array kit is a membrane-based multiplex assay to simultaneously detect 40 mouse inflammatory factors. Suitable for all liquid sample types.
Best Seller
Mouse Inflammation Array C1
Mouse Inflammation Array C1
Contact Us for Bulk Request
Product Description
Specifications
| Size | 2 Sample Kit, 4 Sample Kit, 8 Sample Kit |
| Species | Mouse |
| Compatible Sample Types | Cell Culture Supernatants, Plasma, Serum, Tissue Lysates, Cell Lysates |
| Quantitative/Semi-Quantitative | Semi-Quantitative |
| Number of Targets Detected | 40 |
| Recommended Applications | Multiplexed Protein Detection; Detection of Relative Protein Expression; Detecting Patterns of Cytokine Expression; Biomarker/ Key Factor Screening; Identifying Key Factors; Confirming a Biological Process |
| Solid Support | Membrane |
| Design Principle | Sandwich-based |
| Method Of Detection | Chemiluminescence |
| Research Area | Inflammation |
| Shipping Type | Blue ice |
| Storage | -20°C |
Product Features
- Easy to use
- No specialized equipment needed
- Compatible with nearly any liquid sample
- Proven technology (many publications)
- Highly sensitive (pg/ml)
- Sandwich ELISA specificity
- Higher density than ELISA, Western blot or bead-based multiplex

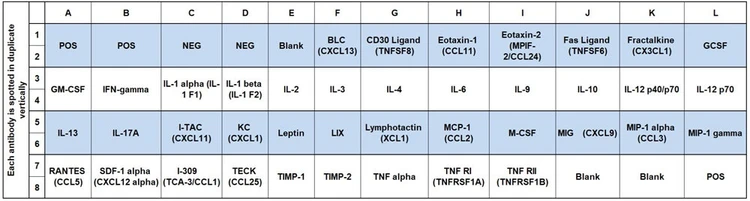

Target Names
| Scroll over each target protein for more information | ||||
|---|---|---|---|---|
BLC (CXCL13)
| CD30 Ligand (TNFSF8)
| Eotaxin-1 (CCL11)
| Eotaxin-2 (MPIF-2/CCL24)
| Fas Ligand (TNFSF6)
|
Fractalkine (CX3CL1)
| GCSF
| GM-CSF
| IFN-gamma
| IL-1 alpha (IL-1 F1)
|
IL-1 beta (IL-1 F2)
| IL-2
| IL-3
| IL-4
| IL-6
|
IL-9
| IL-10
| IL-12 p40/p70
| IL-12 p70
| IL-13
|
IL-17A
| I-TAC (CXCL11)
| KC (CXCL1)
| Leptin
| LIX
|
Lymphotactin (XCL1)
| MCP-1 (CCL2)
| M-CSF
| MIG (CXCL9)
| MIP-1 alpha (CCL3)
|
MIP-1 gamma
| RANTES (CCL5)
| SDF-1 alpha (CXCL12 alpha)
| I-309 (TCA-3/CCL1)
| TECK (CCL25)
|
TIMP-1
| TIMP-2
| TNF alpha
| TNF RI (TNFRSF1A)
| TNF RII (TNFRSF1B)
|

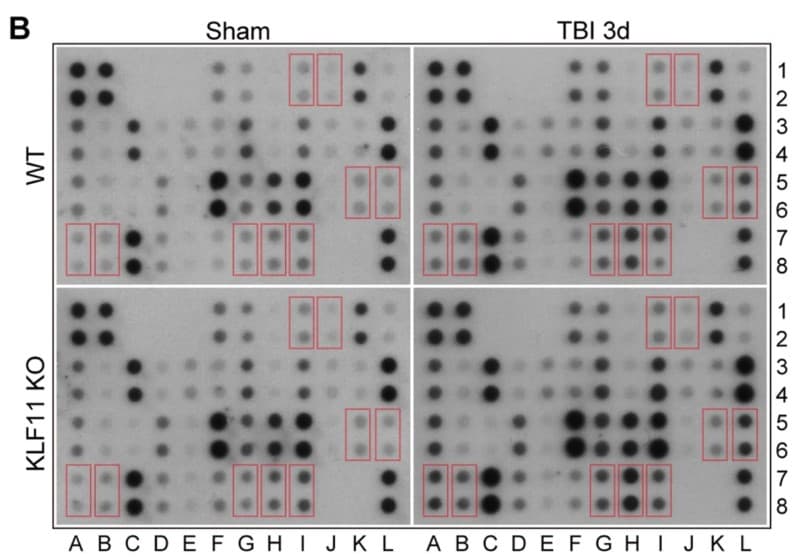

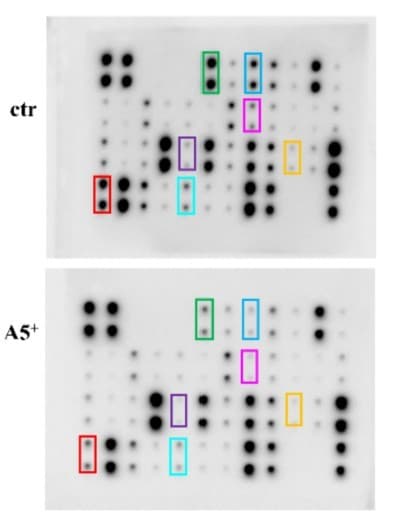

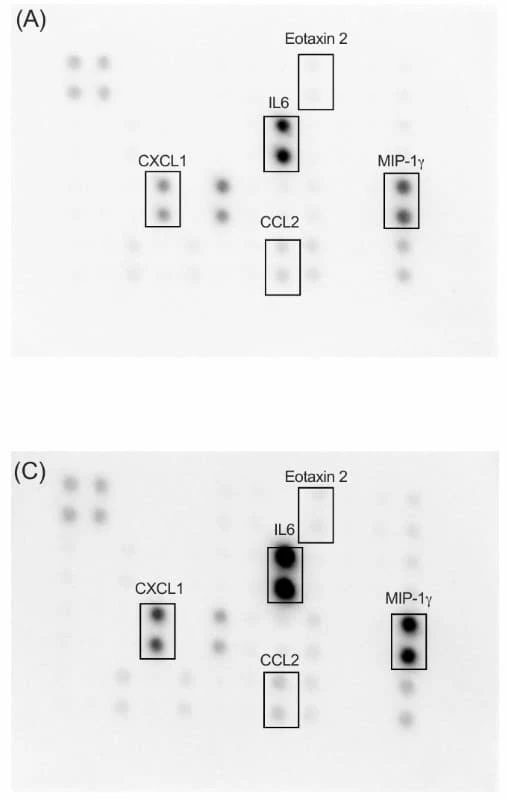

Typical Data

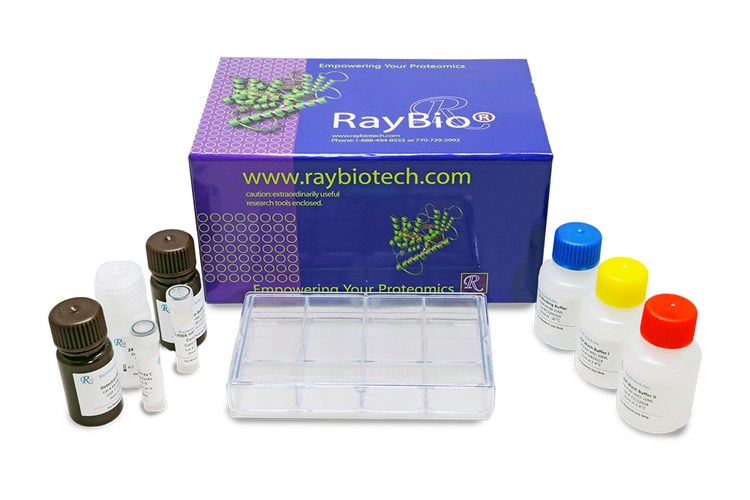

Kit Components
- Mouse Inflammation Antibody Array C1 Membranes
- Blocking Buffer
- Wash Buffer 1
- Wash Buffer 2
- Biotinylated Detection Antibody Cocktail
- Streptavidin-Conjugated HRP
- Detection Buffer C
- Detection Buffer D
- Lysis Buffer
- 8-Well Incubation Tray
- Plastic Sheets
- Array Templates
- Manual
Additional Materials Required
- Pipettors, pipet tips and other common lab consumables
- Orbital shaker or oscillating rocker
- Tissue Paper, blotting paper or chromatography paper
- Adhesive tape or Saran Wrap
- Distilled or de-ionized water
- A chemiluminescent blot documentation system (such as UVP's ChemiDoc-It® or EpiChem II Benchtop Darkroom or GE's ImageQuant™ LAS 4000 or Amersham Imagers 600 and 680), X-ray Film and a suitable film processor, or another chemiluminescent detection system.
Assay Procedure Summary
- Block membranes
- Incubate with Sample
- Incubate with Biotinylated Detection Antibody Cocktail
- Incubate with HRP-Conjugated Streptavidin
- Incubate with Detection Buffers
- Image with chemiluminescent imaging system
- Perform densitometry and analysis
Storage/Stability
For best results, store the entire kit frozen at -20°C upon arrival. Stored frozen, the kit will be stable for at least 6 months which is the duration of the product warranty period. Once thawed, store array membranes and 1X Blocking Buffer at -20°C and all other reagents undiluted at 4°C for no more than 3 months.
documents
citations
CD8+ T cell depletion prevents neuropathology in a mouse model of globoid cell leukodystrophy
- Species:
- Mouse
- Sample Type:
- brain tissue
- Year:
- 2023
- Journal Name:
- Journal of Experimental Medicine

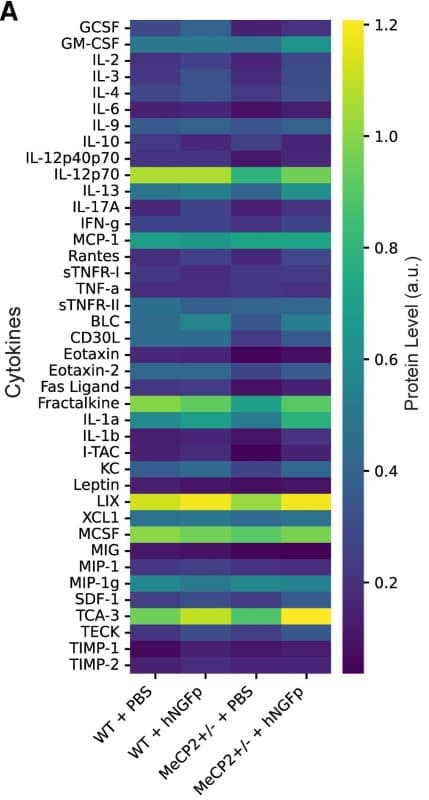

Reversal of neurological deficits by painless nerve growth factor in a mouse model of Rett syndrome
- Species:
- Mouse
- Sample Type:
- brain
- Year:
- 2023
- Journal Name:
- Brain
Controlled Release of Cold Atmospheric Plasma by Gelatin Scaffold Enhances Wound Healing via Macrophage Modulation
- Year:
- 2025
- Journal Name:
- ACS Appl Mater Interfaces
- PubMed ID:
- 40013441
Loss of microRNA-15a/16-1 function promotes neuropathological and functional recovery in experimental traumatic brain injury
- Year:
- 2024
- Journal Name:
- JCI insight
- PubMed ID:
- 38912585
SAP deletion promotes malignant insulinoma progression by inducing CXCL12 secretion from CAFs via the CXCR4/p38/ERK signalling pathway
- Year:
- 2024
- Journal Name:
- Journal of Cellular and Molecular Medicine
- PubMed ID:
- 38766687

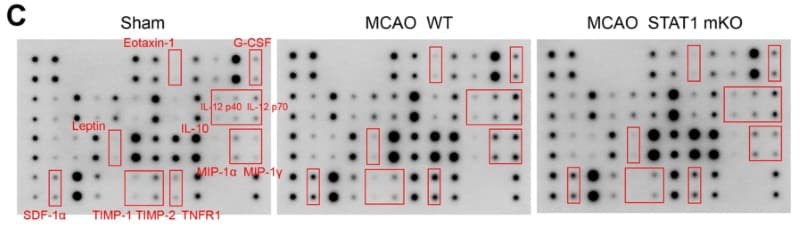

Targeted ablation of signal transducer and activator of transduction 1 alleviates inflammation by microglia/macrophages and promotes long-term recovery after ischemic stroke
- Species:
- Mouse
- Sample Type:
- brain tissue
- Year:
- 2023
- Journal Name:
- Journal of Neuroinflammation
A Novel Mix of Polyphenols and Micronutrients Reduces Adipogenesis and Promotes White Adipose Tissue Browning via UCP1 Expression and AMPK Activation
- Species:
- Mouse
- Sample Type:
- 3T3-L1 cell
- Year:
- 2023
- Journal Name:
- Cells
Decreased bone resorption in Ezh2 myeloid cell conditional knockout mouse model
- Species:
- Mouse
- Sample Type:
- spine
- Year:
- 2023
- Journal Name:
- FASEB JOURNAL
Soybean (Glycine max) INFOGEST Colonic Digests Attenuated Inflammatory Responses Based on Protein Profiles of Different Varieties
- Species:
- Mouse
- Sample Type:
- RAW 264.7 cell
- Year:
- 2023
- Journal Name:
- International Journal of Molecular Sciences
Distinct Plasma Immune Profile in ALS Implicates sTNFR-II in pAMPK/Leptin Homeostasis
- Species:
- Mouse
- Sample Type:
- Plasma
- Year:
- 2023
- Journal Name:
- International Journal of Molecular Sciences
